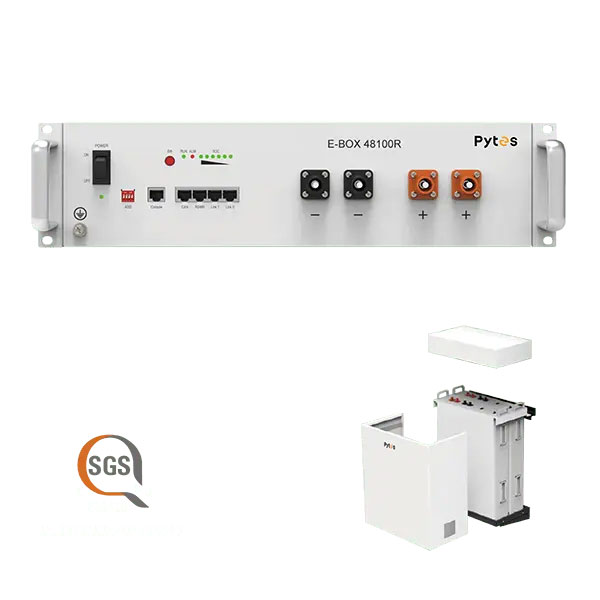

E-Box 48100R
The advanced solar battery storage delivers safer and more efficient energy storage. Compatible with all leading inverters, E-Box-48100R is a smart choice for battery replacement, expansion or a new installation. The solar battery storage which enable homeowners to store energy generated from renewable sources, reducing their reliance on the grid.
Safe and Reliable Solar Battery Storage
Tier 1 Automotive Grade A prismatic LiFePO4 cells
Self-developed BMS (Dual active MCU protection)
State-of-the-art battery pack design achieves market-leading performance and safety
Long-lasting and Efficient
≥6000 cycles @90%DOD, ret@80%, 25℃
>95% Round-trip efficiency
10 years warranty, Up to 20 years design life
Product Liability Insurance for North and Latin America
Certifications for Solar Battery Storage

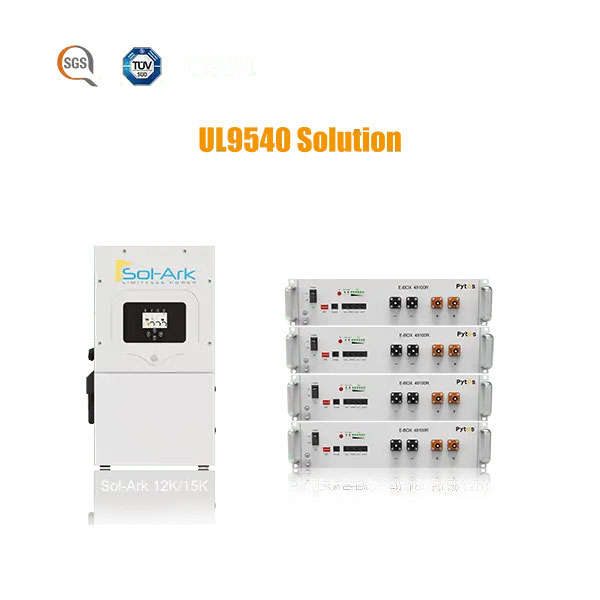

UL9540, UL1973, UL9540A, CEC, SGIP, UN38.3
Wide Compatibility
Compatible with most inverter brands on the market
Our solar battery storage system is engineered to work harmoniously with all major inverters
Compact, Flexible and Easy Install
Slimmer than most 5kWh server rack batteries
Can be installed vertically and horizontally
Brackets and battery enclosures available
Wall mount, floor-stand or server rack mount
Wide Applications
Off-grid, Back-up, Zero Export, Time-of-Use, Demand Response, Peak Shaving, and Virtual Power Plant
Home Appliances, Electric Power Systems, Uninterrupted Power Supply
Scalable for Demand

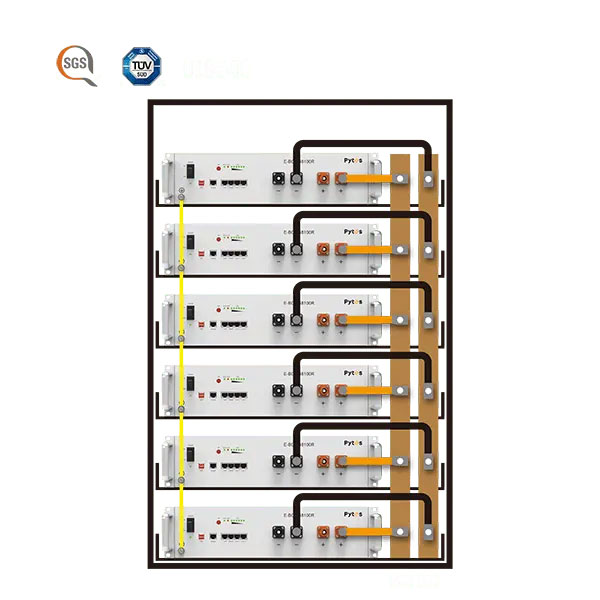

Expandable up to 245.76kWh
Max support 96 units parallel connection
Local Delivery & Services
Local stock for faster delivery
Local team provides comprehensive services
Delivery from Pytes warehouses located in California, Texas and Washington
| Battery Model | E-BOX-48100R |
|---|---|
| Chemistry | LFP |
| Nominal Voltage | 51.2V |
| Voltage Range | 47.5V-58V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5.12kWh |
| Unit Dimension (LxWxH) | 17.32″ x 24.41″ x 4.61″ |
| Unit Weight | 112.5lbs |
| Peak Current | 102A @15s |
| Maximum Continuous Discharge Rate | 100A |
| Standard Continuous Discharge Rate | 50A |
| Maximum Continuous Charge Current | 100A |
| Standard Continuous Charge Current | 50A |
| Round-Trip Efficiency | ≥95% |
| Cycle Life | ≥6000cycle |
| Calendar Life | ≥10years |
| Communication Protocol | RS485, CAN,RS232 |
| Operating Temperature | 14°F ~ 122°F |
| Connect style | Parallel |
| Storage Temperature | <1month: -4~113°F 1-3months: -4~95°F 3-12months: 68~77°F |
