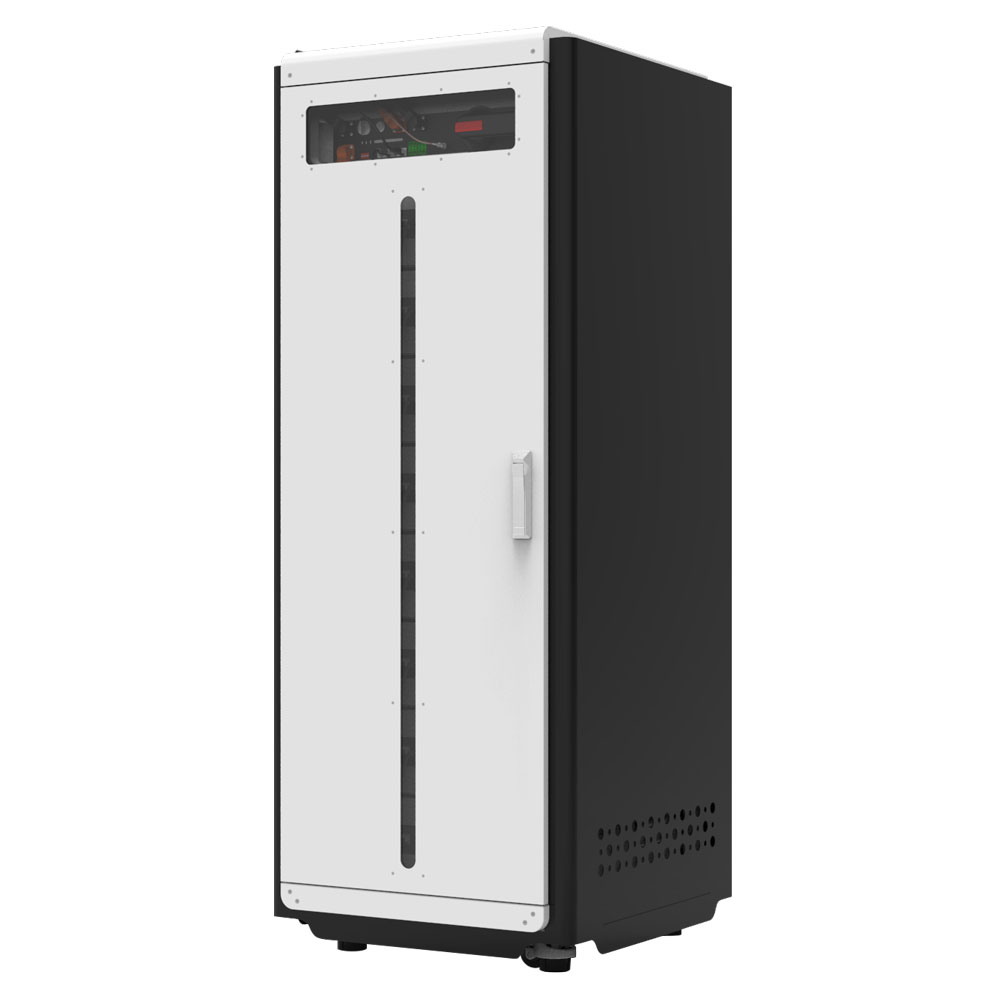

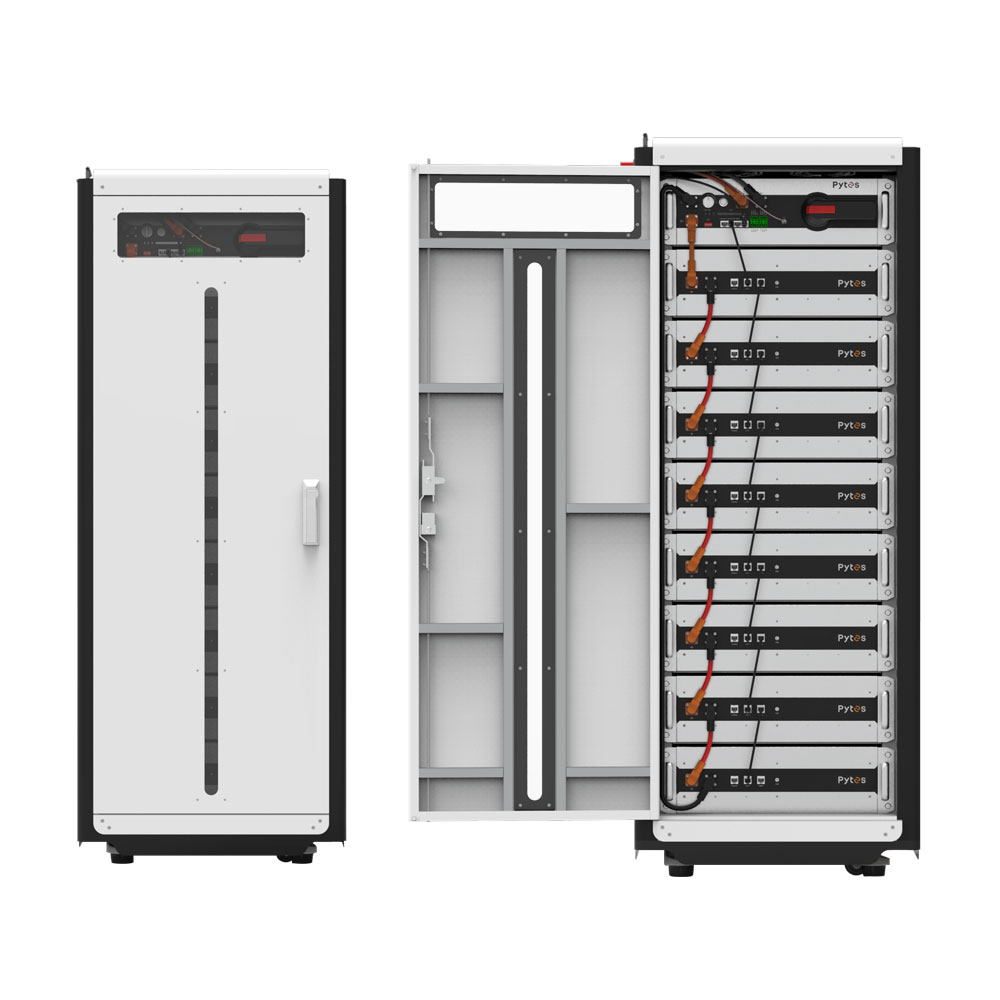

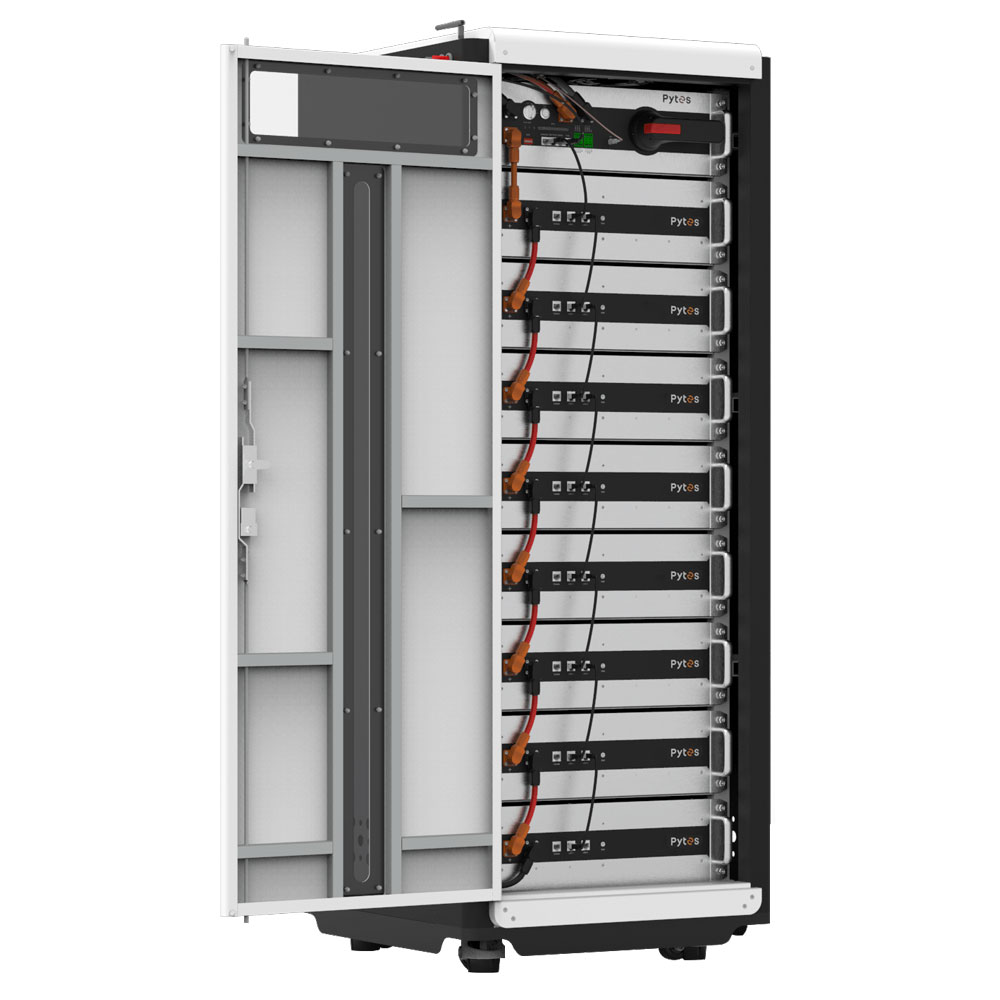

HV48100
IP20 protection grade cabinet distributed energy storage system, integrating battery pack, high voltage control box, and battery management system.
It can be widely used in charging stations, buildings, factories and other scenarios to realize the functions of peak shaving, emergency power
backup, and weak system pv power storage.
High performance battery cell
The HV48100 distributed energy storage system adopts high-performance LFP energy
storage battery which is equipped with pytes independent battery management system that
can effectively guarantee battery safety, with a cycle life of over 6,000 times and a cycle
efficiency of up to 95%.
System Expansion
The HV48100 distributed energy storage system supports to extend the systems to 8 sets in
series in maximum, which can meet the demand of 25.6 KWh to 40.96 KWh energy storage
configuration and realize the collaborative control of multiple devices through the intelligent
control system
Short charging time
Full charge in 2 hours with 2.56KW per module peak continuous output.
Long-lasting and Efficient
The system has a cycle life of over 6000 times with efficiency of 95%.
Wide Applications
It can be widely used in charging stations, buildings, factories and other scenarios to realize the functions of peak shaving, emergency power backup, and weak system pv power storage.
Local Delivery & Services
Local stock for faster delivery
Local team provides comprehensive service
| HV48100 BCU | |
|---|---|
| Controller Working Voltage | 200V~870V |
| Self-consumption Power | 7.56W |
| Dimensions (W*D*H) | 19.06*20.09*5.51 inch |
| Weight | 29.32 lbs |
| Communication | CAN, RS485, Dry Contact, WiFi |
