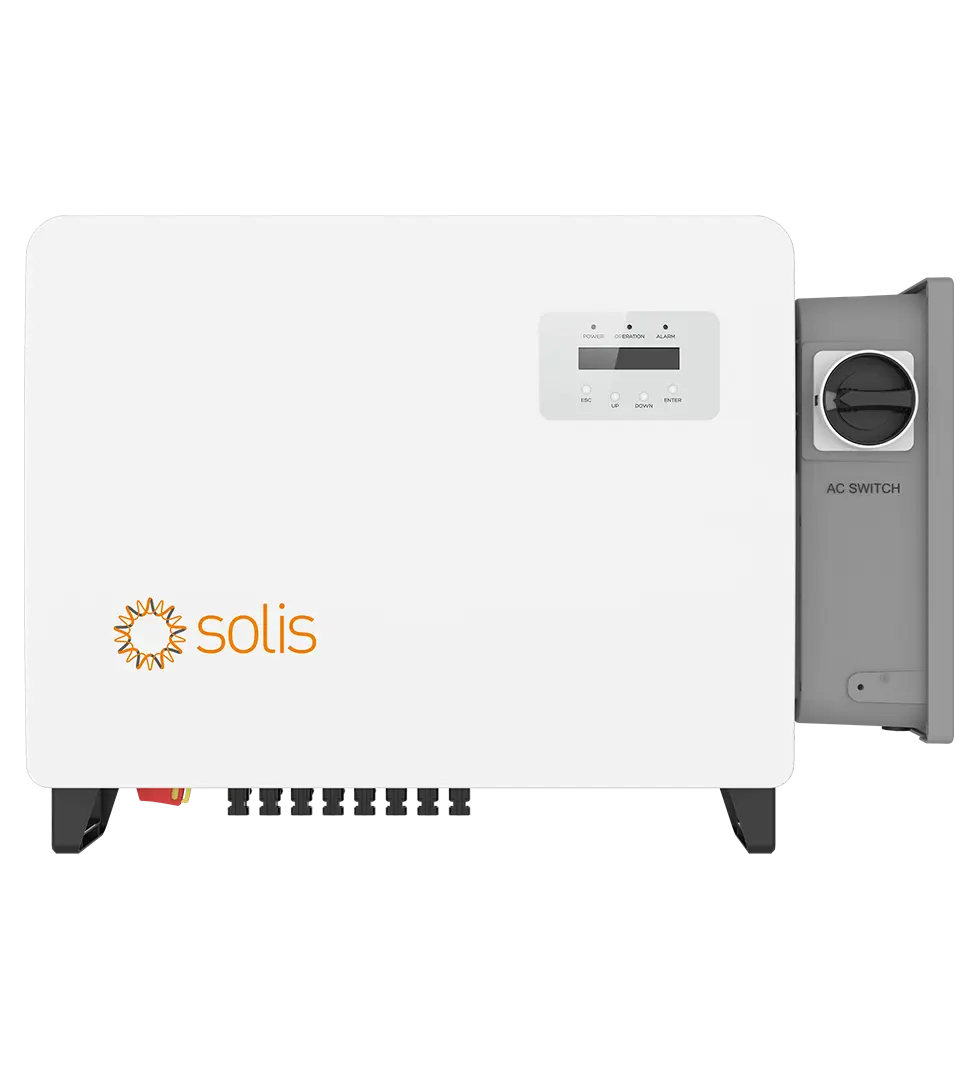

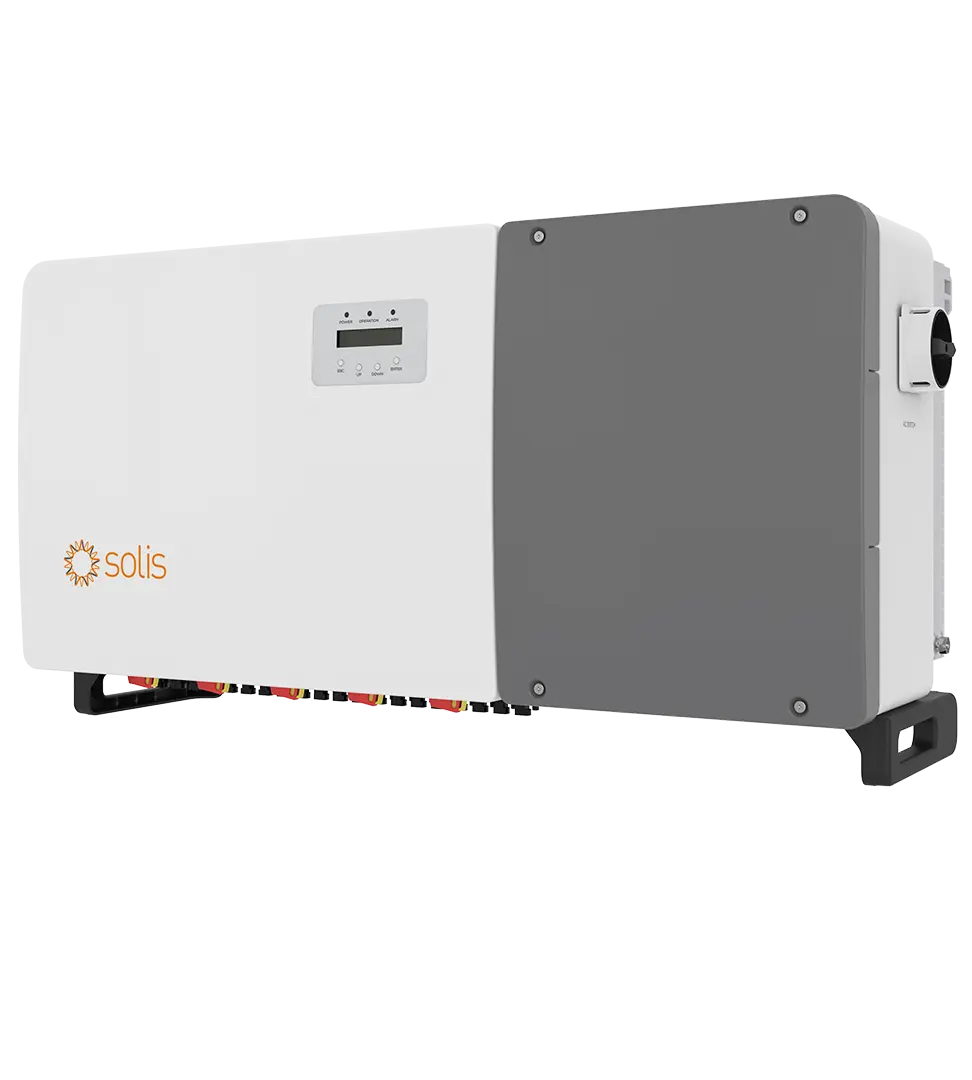

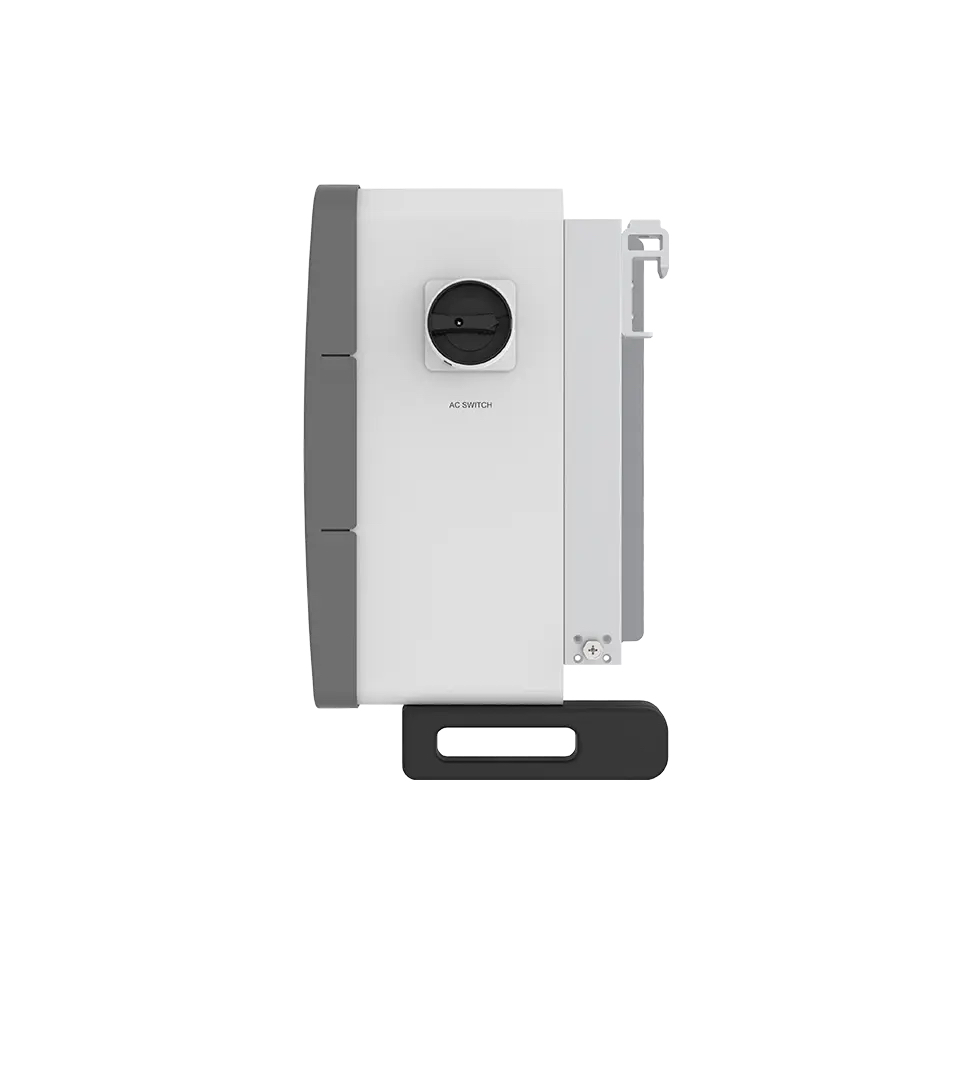

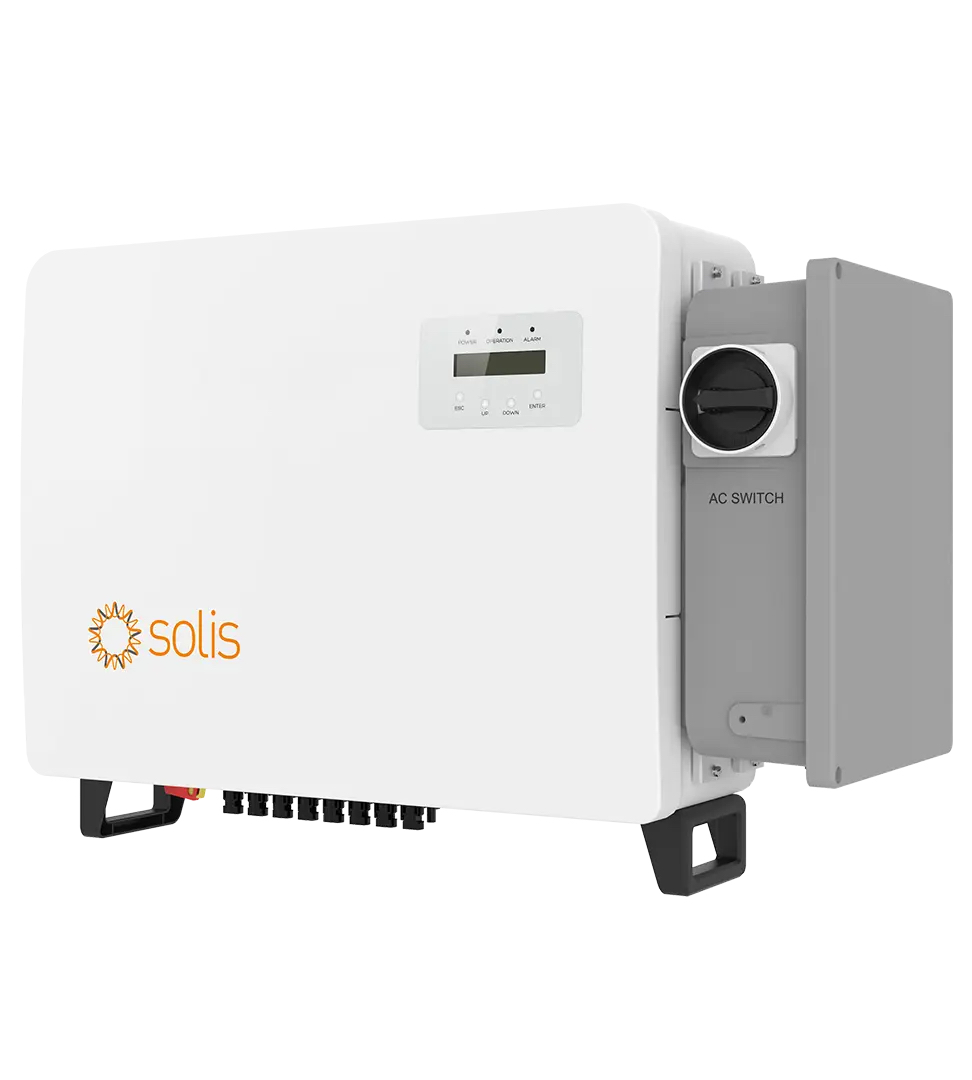

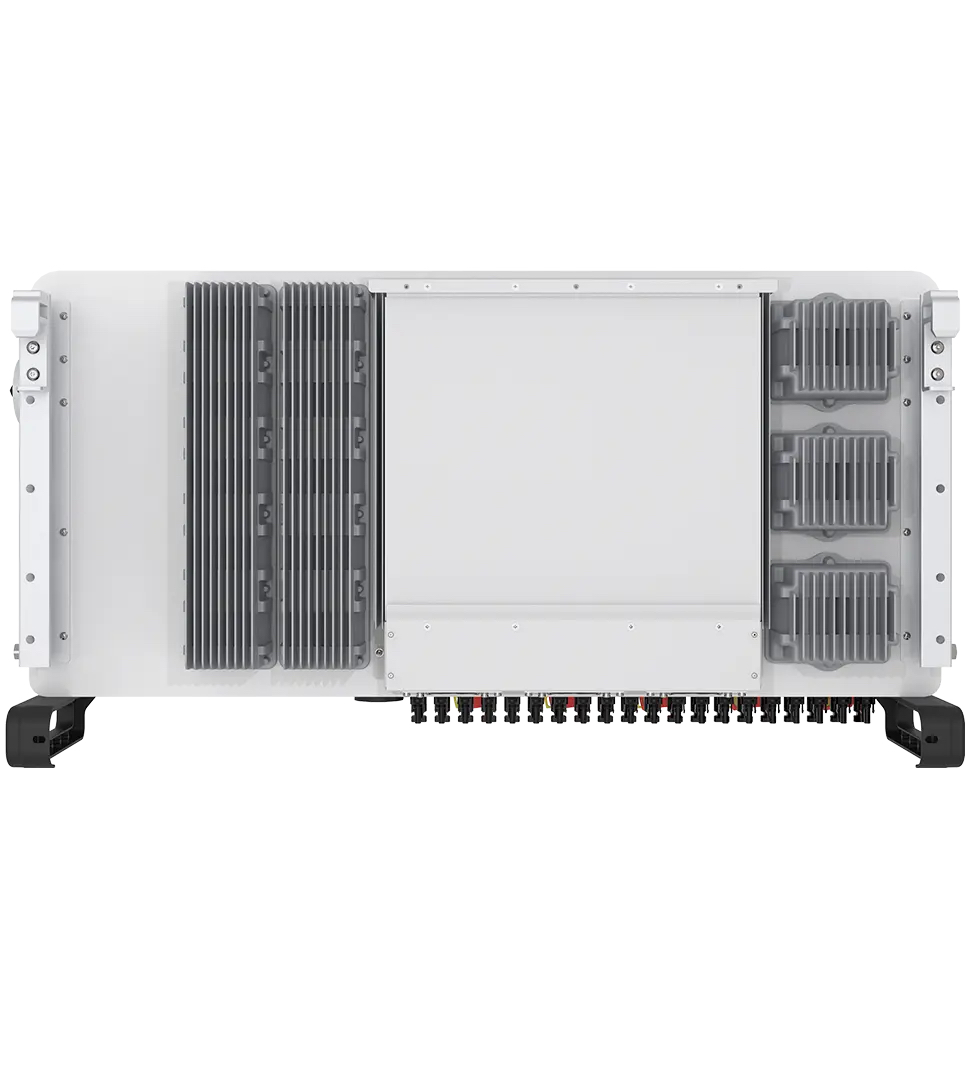

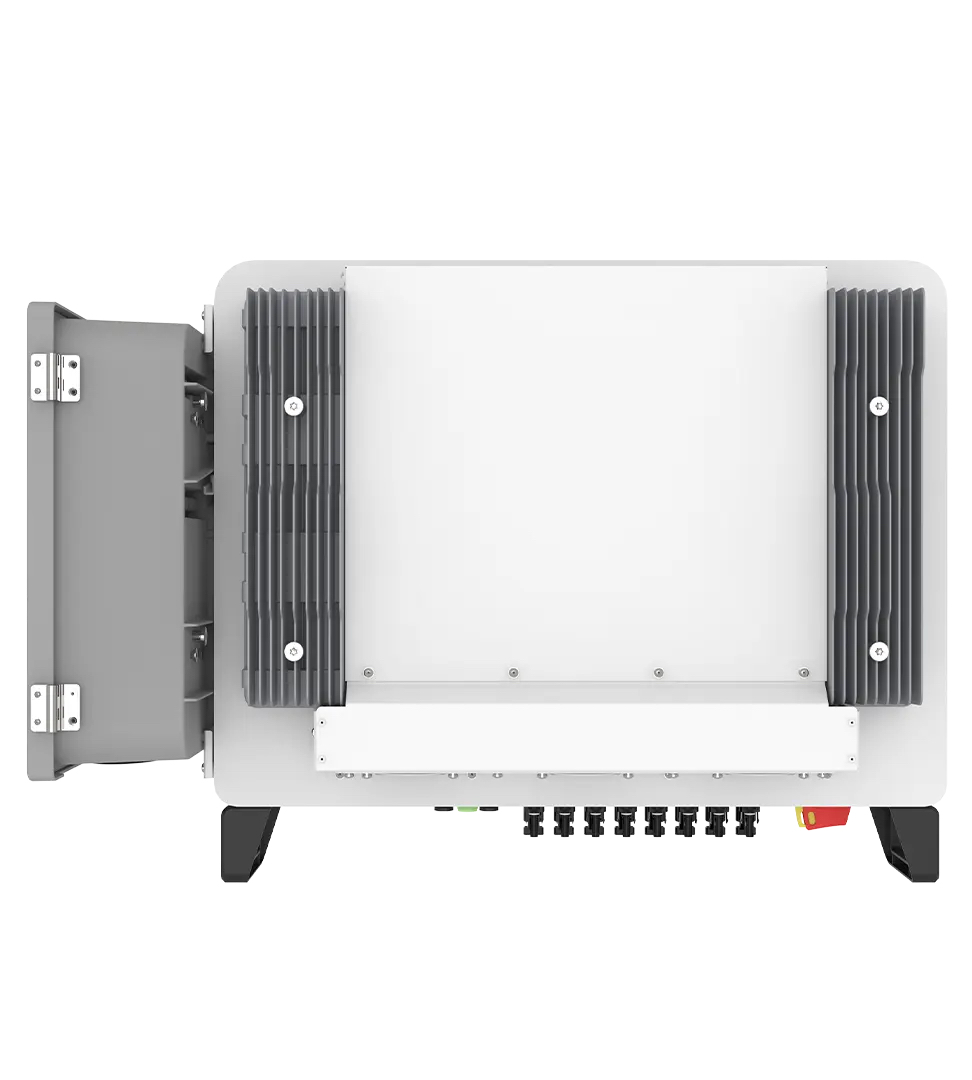

S6-GC30K-LV-US / S5-GC60K-LV-US
S6-GC30K-LV-US and S5-GC60K-LV-US string inverters are suitable for three-phase commercial rooftop PV projects with grid voltage of 240 or 208VAC. Both string inverters have high input currents, which enable support of larger PV modules without compatibility issues, better supporting power density and flexibility. Wider operating voltages support operation for longer periods throughout the day, resulting in better system yields. Commissioning, operations and management are simplified through state-of-the-art design and monitoring. Optimized DC and AC connect ports reduce the cost of system cables. Tested to the harshest conditions, Solis’ success in the market and global top ratings are largely in part due to the quality we strive for. This product line is also certified PVRSS and UL3741 compliant, meaning that you can realize cost and time savings by supporting simpler installs.
Efficient
- String current up to 20A
- Max. efficiency 97.7% (CEC efficiency 97.0%)
- Nighttime PID recovery function (optional)
- Wide voltage range and low startup voltage
- 3 MPPT design, supports multiple orientation system design
Safe
- Intelligent fan-cooling
- Type 4X, C5 Anti-Corrosion Level
- AFCI protection, proactively reduces fire risk
- Integrated module level rapid shutdown transmitter
- High quality components from globally recognized suppliers
Smart
- Supports RS485, Ethernet, WiFi, Cellular
- Intelligent string monitoring, smart I-V curve scan
- Scan to register on SolisCloud, supports remote upgrade and control
- Equipped with external power control interface, supporting zero output power control
Economic
- > 1.5 DC/AC ratio
- Supports high power modules for lower installation costs
