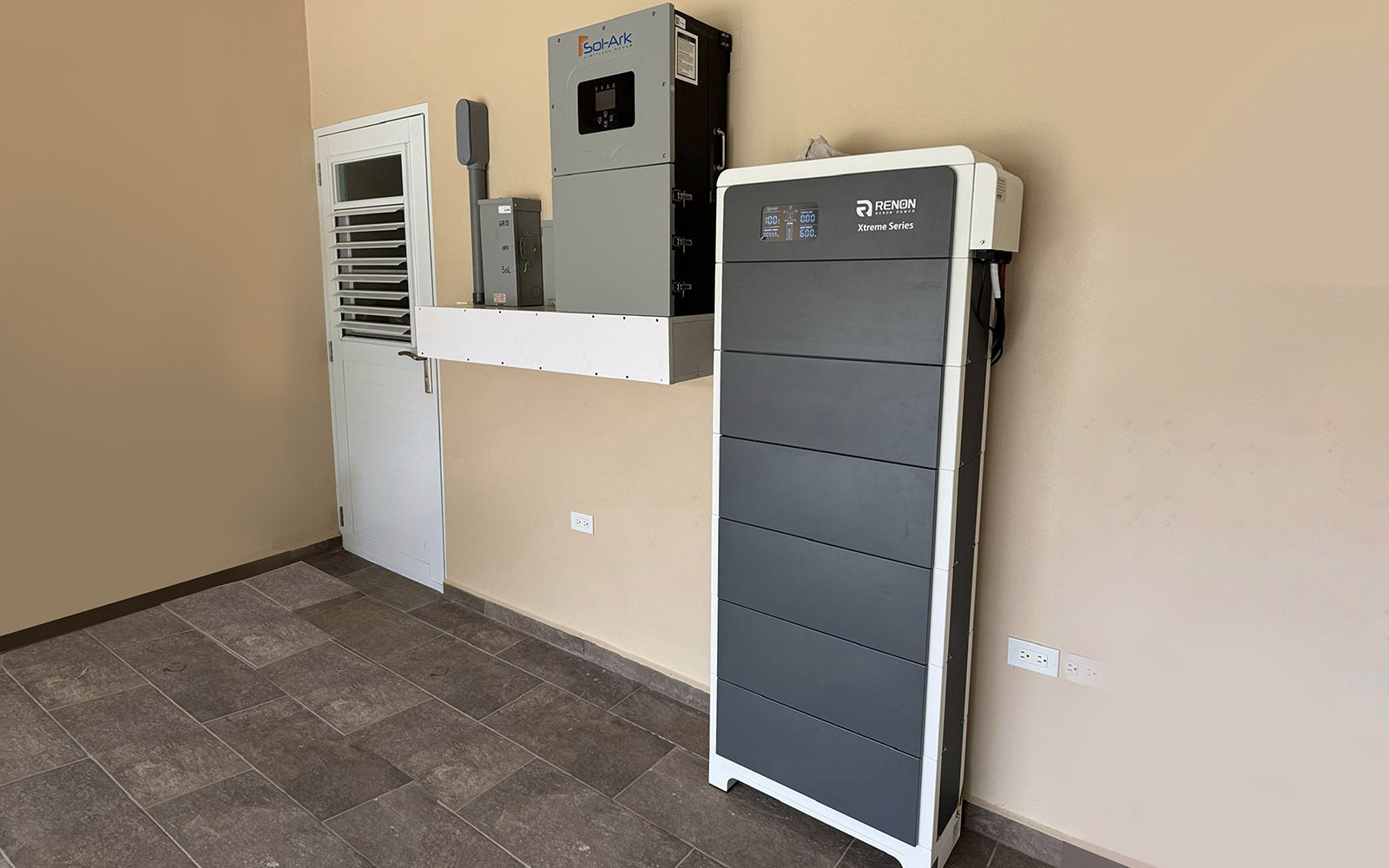

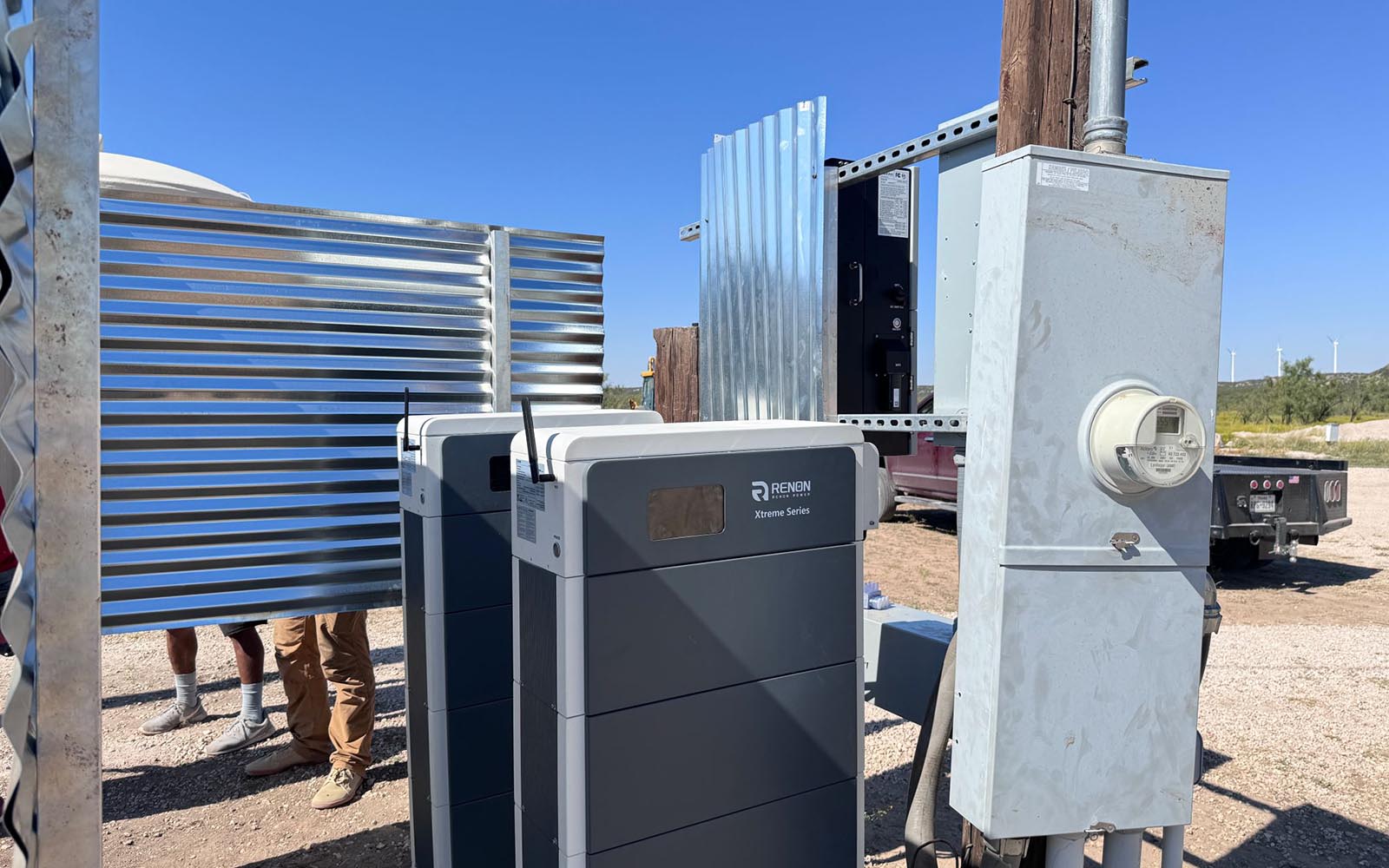

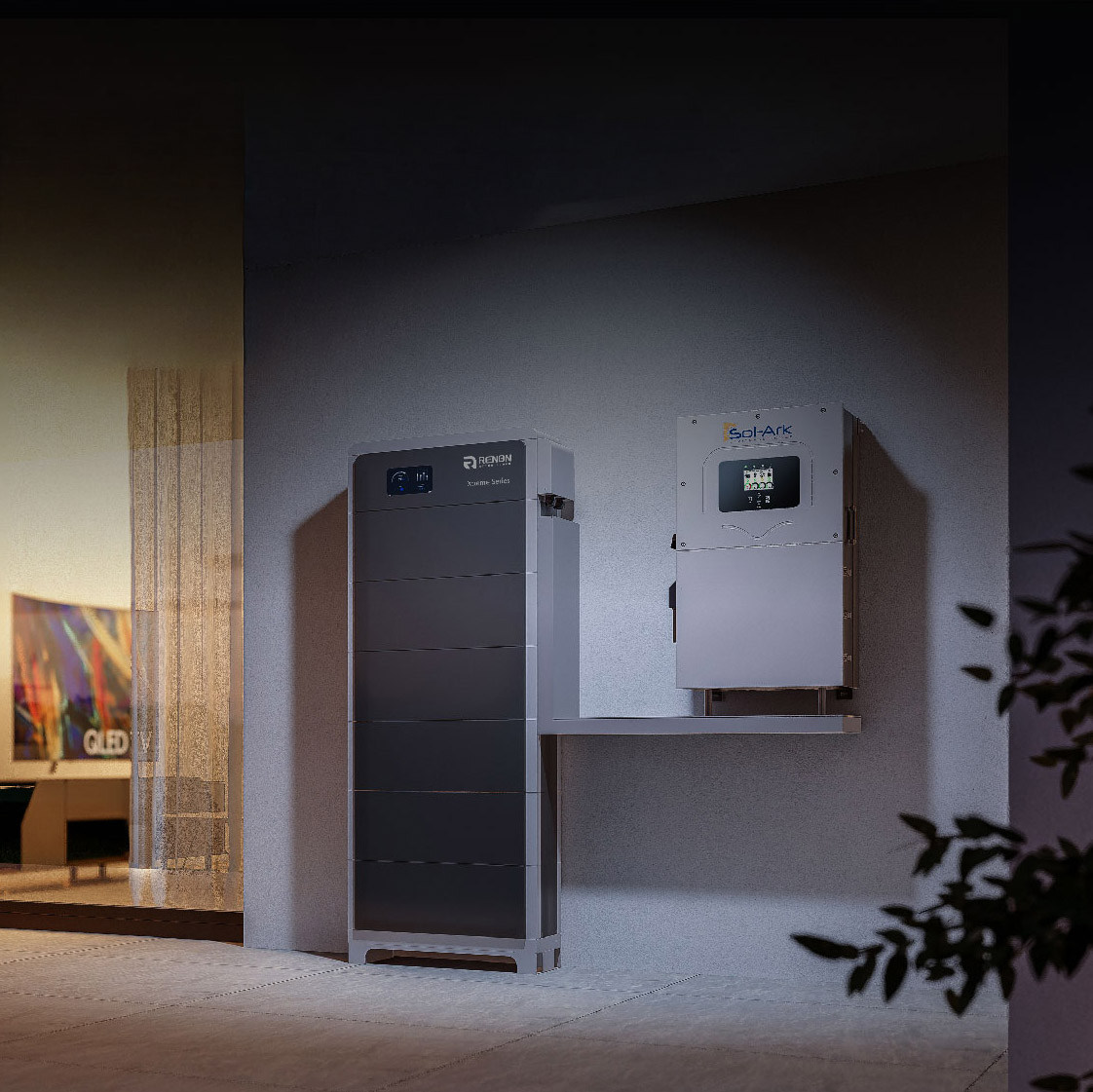

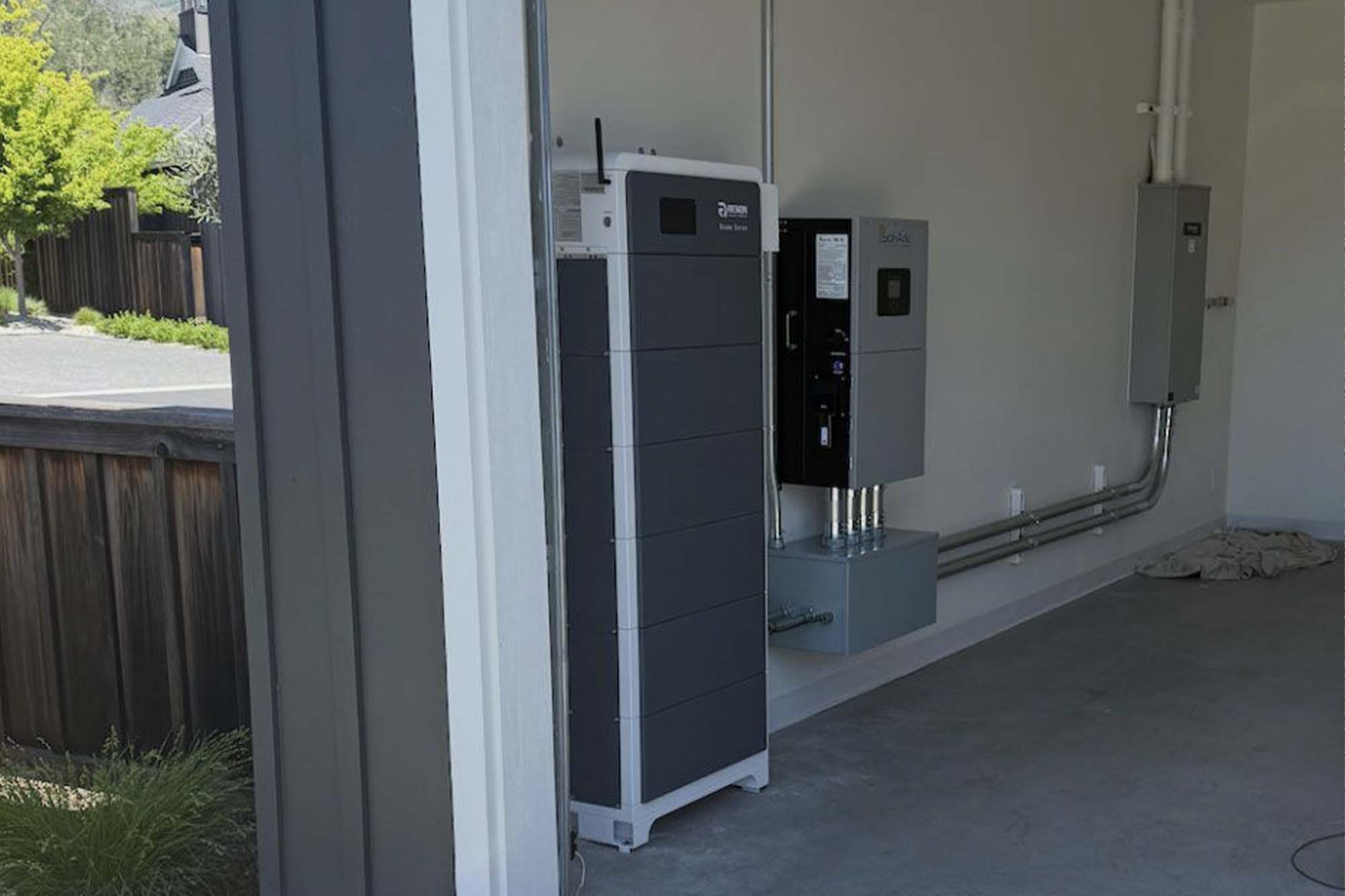

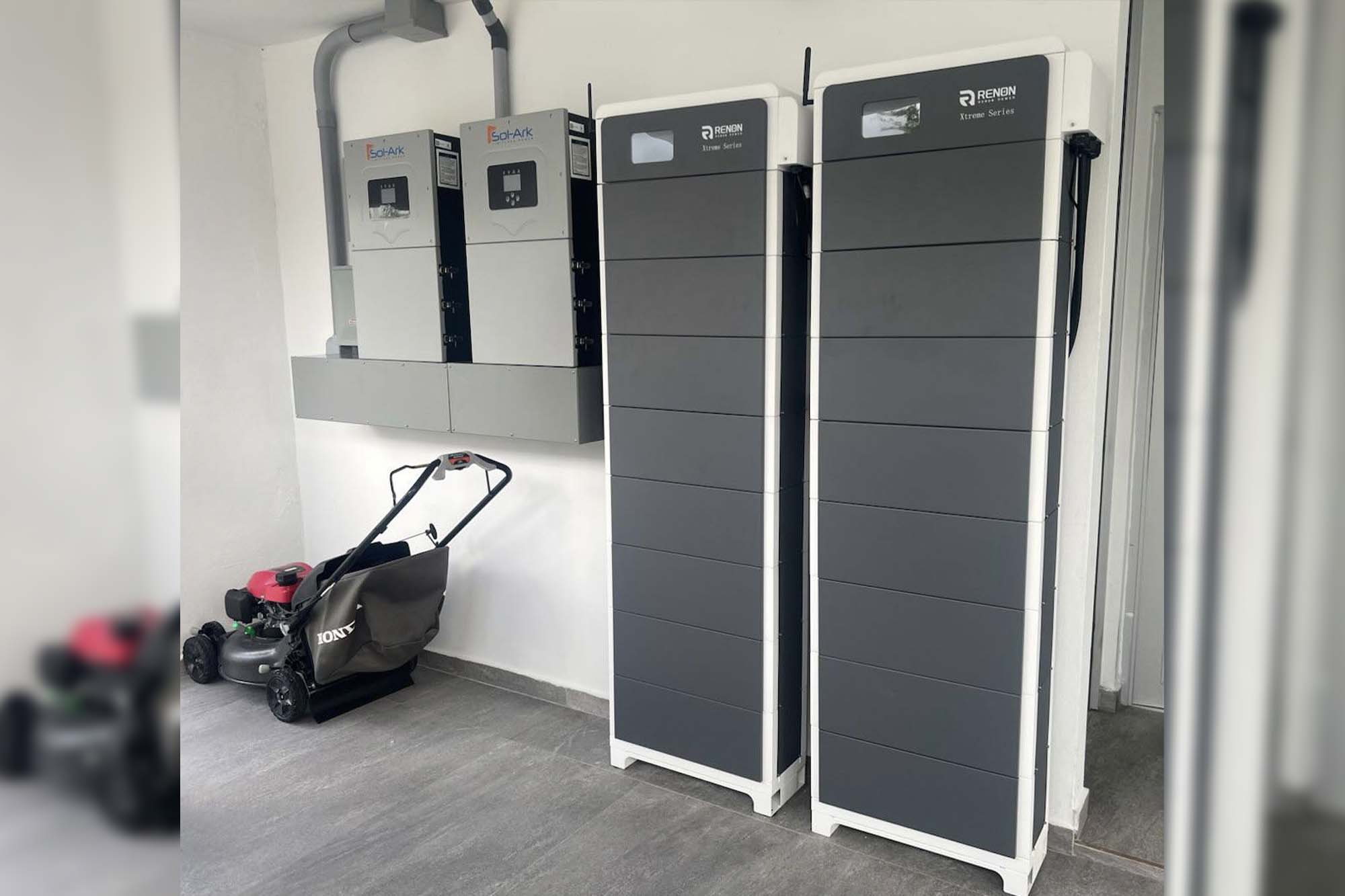

Xtreme LV

Modular LV Battery System

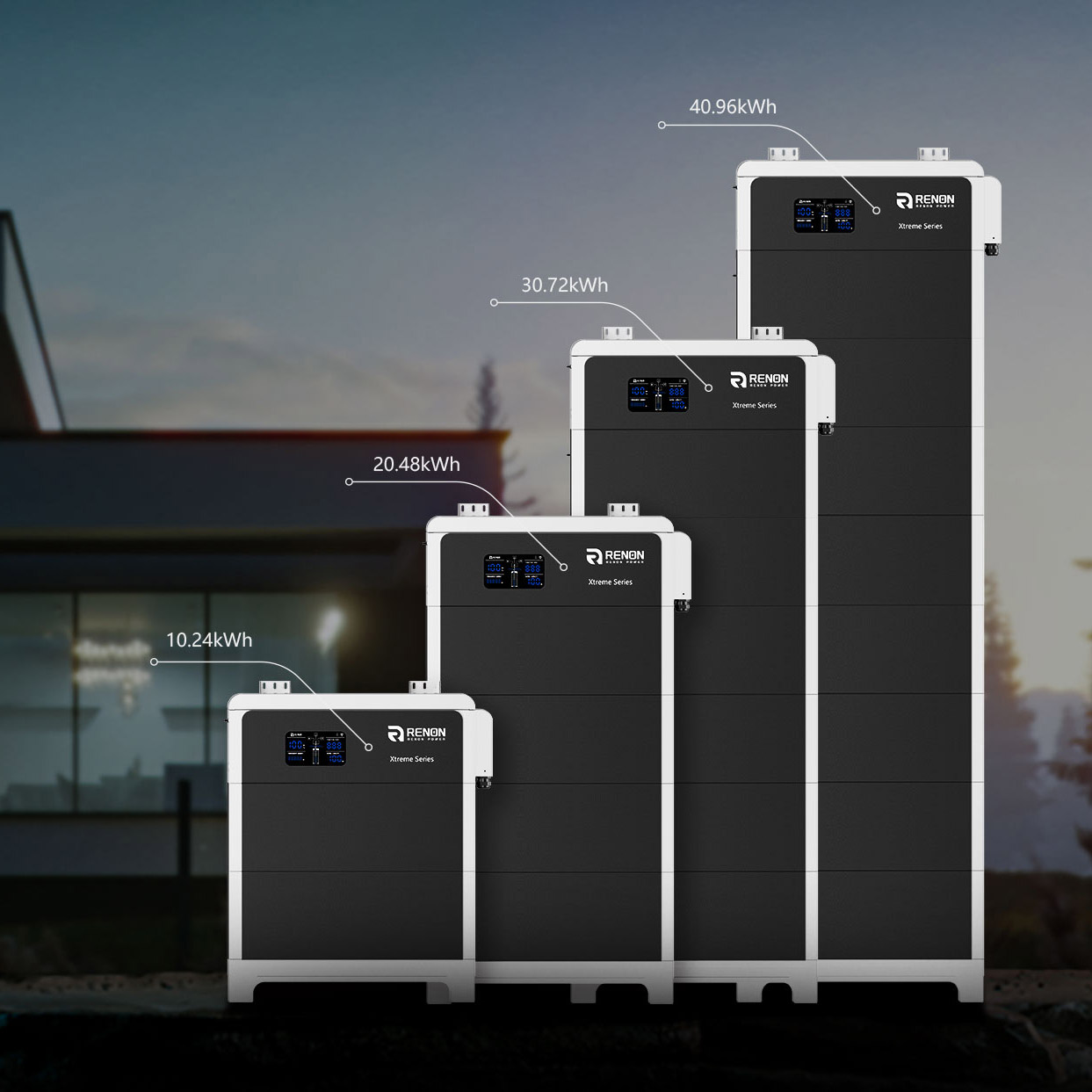

The Xtreme LV combines a compact design with robust performance, suitable for 10.24kWh to 40.96kWh configurations. It meets diverse energy needs with over 8000 cycles, temperature adaptability from –20°C to 50°C, and multiple communication options (RS485 CAN WiFi). Supported by a 10-year warranty.

Description

Notably at Renon Power

  • Uncompromising Safety Standards for Ultimate Protection
  • Effortless Scalability and Growth for Future Needs
  • Optimized Space Utilization for Maximum Efficiency

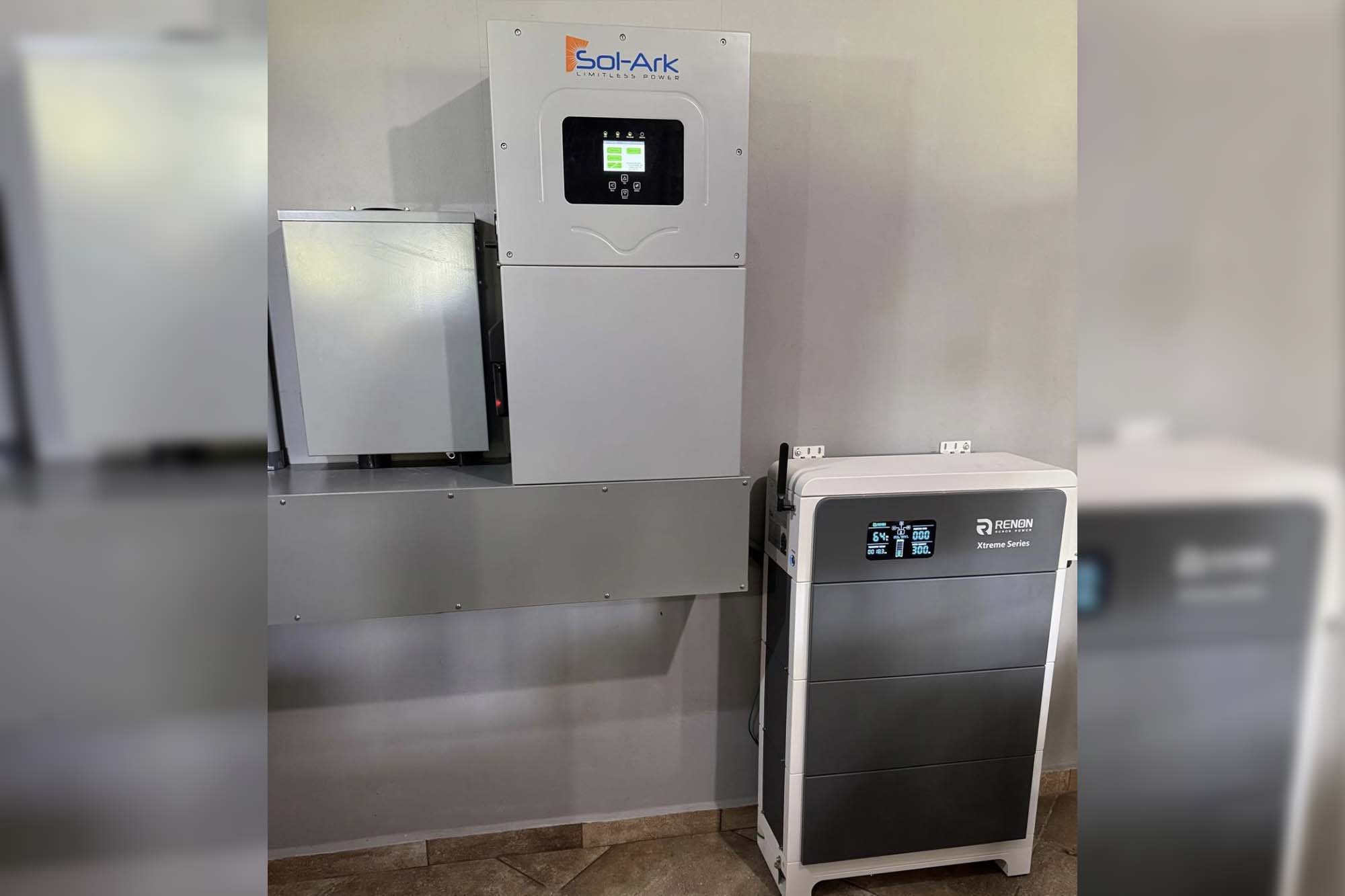

  • Wide-ranging System Integration with Hybrid Inverter
  • Reliable and Consistent Efficiency in All Conditions

Major Specifications

2 Modules 3 Modules 4 Modules 5 Modules 6 Modules  7 Modules 8 Modules
Nominal Energy (kWh) 10.24 15.36 20.48 25.6 30.72 35.84 40.96
Output Power (kW) 9.7 14.6 15.4 15.4 15.4 15.4 15.4
Nominal Voltage (V) 51.2
Dimensions – W*D*H (in) 25*10.6*31.3 25*10.6*40.3 25*10.6*49.2 25*10.6*58.2 25*10.6*67.1 25*10.6*76 25*10.6*85
Weight (lb) ~311 ~428 ~545 ~661 ~778 ~895 ~1012
Certifications UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
